The main tasks of the shelter quarter were as follows:
-
to make a tent
-
to act as a rain cape (Regenmantel)
Below a tent made of four shelter
quarters
on top of the tent, a german helmet to prevent rain water from entering
the tent
The following pictures come from the German Army Manual H.Dv. 205/1 (Heeres Diensvorschrift)

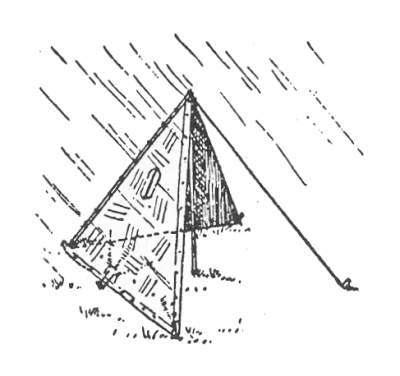

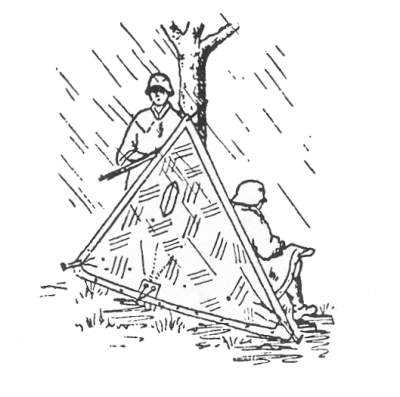

The single tent (Einzelzelt)
This configuration offered some protection against
the rain and wind, but hardly deserves the name tent.

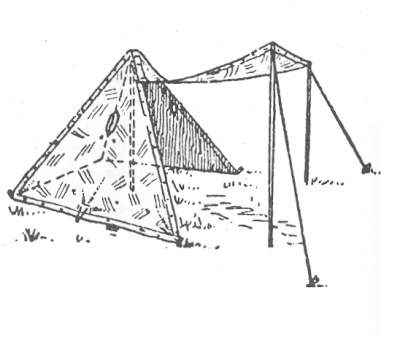

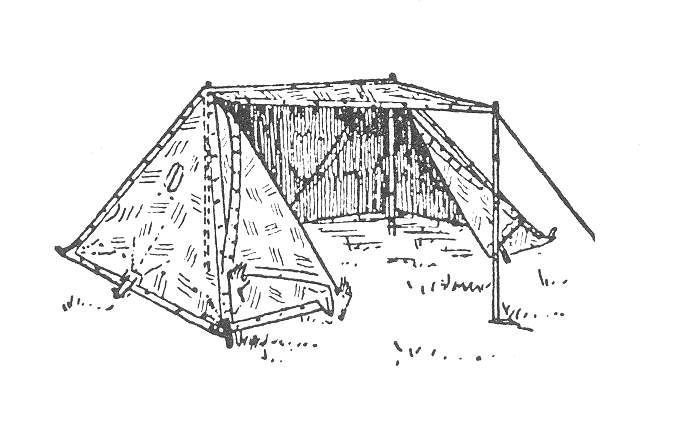

A half tent (Halbzelt)
This configuration also offered a little bit protection
against rain and wind, and begins to look like a tent.

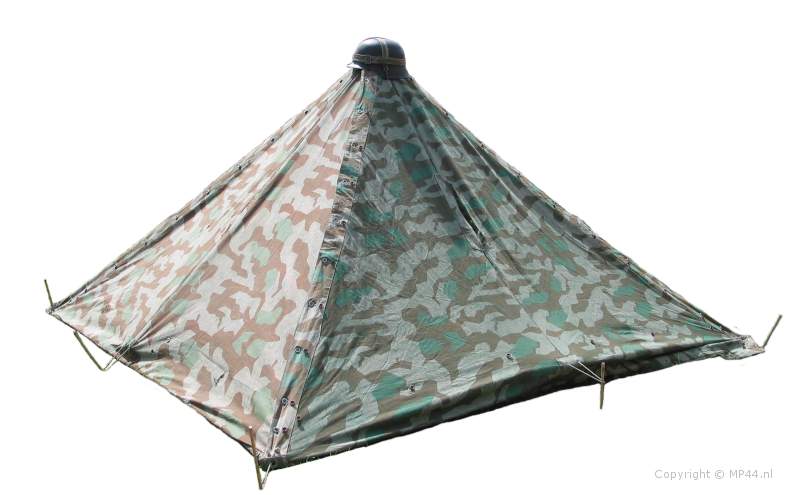

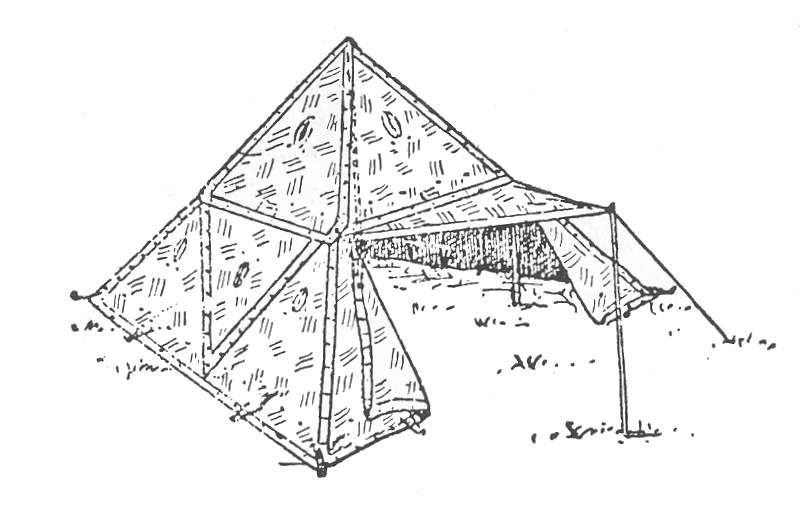

Four man pyramid tent (Viererzelt)
In this often seen configuration the tent offered place for four persons.

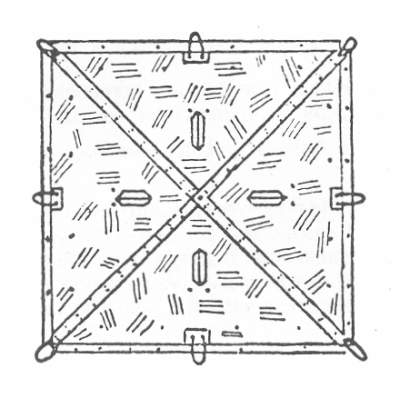

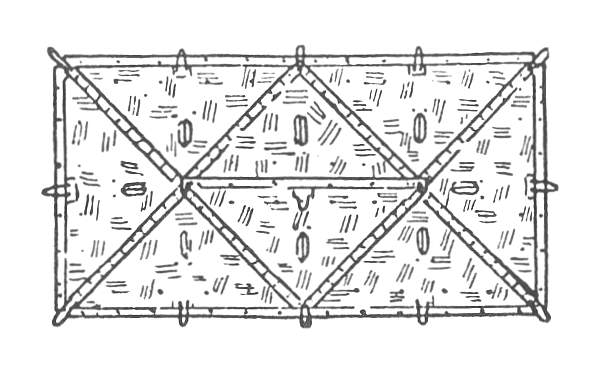

Top view of the four man pyramid tent (Viererzelt)
The tents could be extended to offer
accomodation for more persons
like this eight man tent (Achterzelt)
Top view of the eight man tent

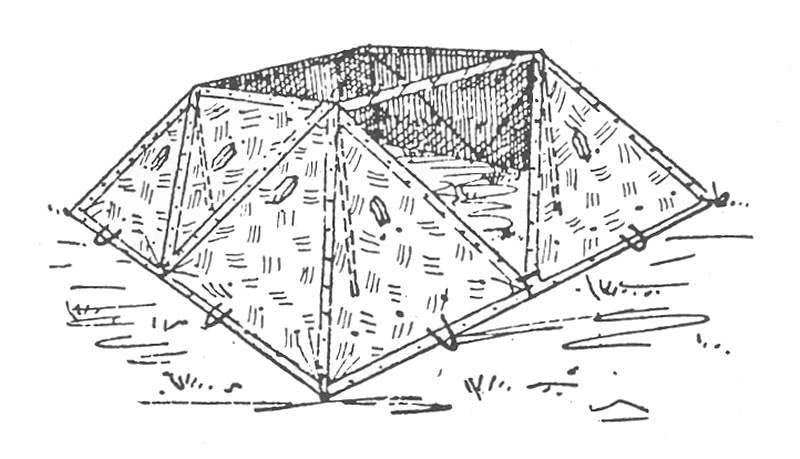

And finaly the so called house tent (Hauszelt)
With the use of 16 shelter quarters a tent could be made with a total surface of 25 m2 and a height of 2,80m
The Rain Cape (Regenmantel)
The shelter quarter also could be
used as a rain cape.
By buttoning up the shelter quarter in a different way, 3 versions could
be made:
-
unmounted
-
mounted
-
cyclists

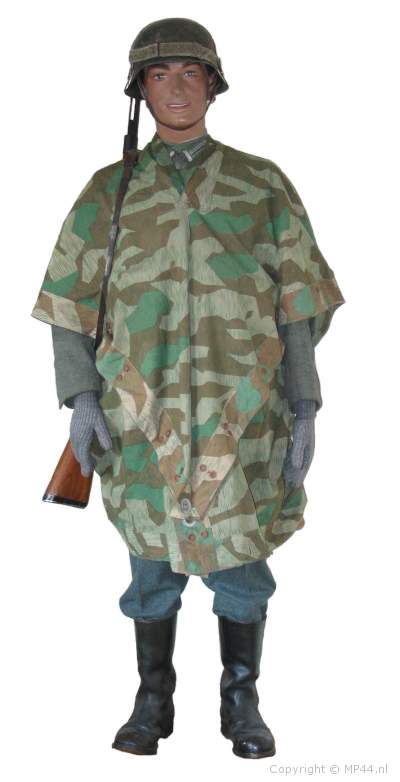

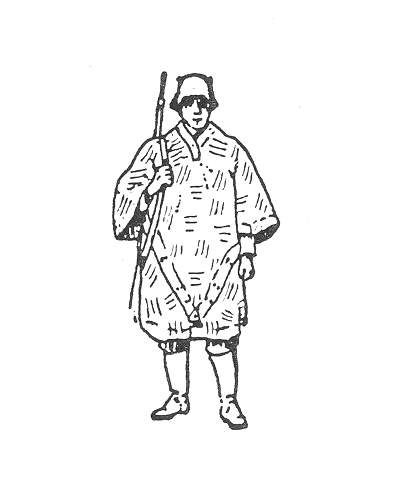

Here the unmounted way is shown.
As can be seen, the shelter quarter could be worn
over the equipment.

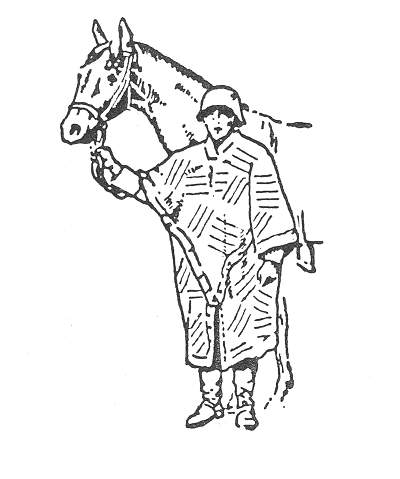

Here the mounted way is shown.
The top is buttoned uo higher as to leave
more space for the legs.

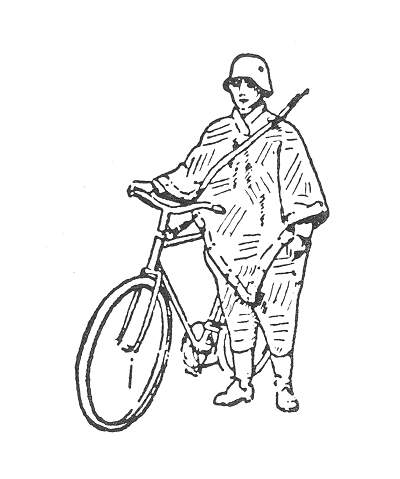

Here the method is shown for cyclists.
As can be seen, the shelter quarter is buttoned up
around the legs.
On the left the shelter quarter is shown worn
over the equipment.
